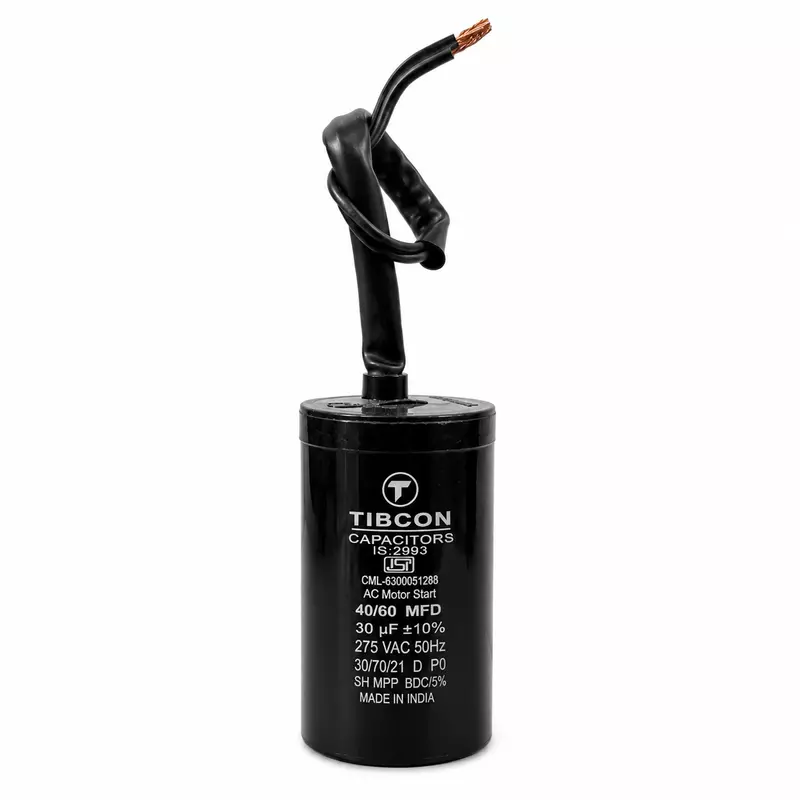

Tibcon 30 (40-60) MFD Motor Starting Capacitor | 275V | Aluminium | Starting
30
MFD
| 40-60
START RANGE
| 275V
VOLTAGE
| Polypropylene
BODY
|
Customize
Product Details
Heavy-duty motor starting capacitor designed for high starting torque and reliable motor startup in pumps, compressors, air coolers and other single-phase motor applications.
The Tibcon 30 MFD (40-60 MFD range) Motor Starting Capacitor delivers the additional starting support required during the starting cycle of single-phase motors. It helps motors start smoothly, improves starting efficiency, and supports reliable motor operation.
Built with a durable Polypropylene body and high-quality dielectric components, this capacitor provides good heat resistance, electrical insulation, mechanical durability, and dependable performance under demanding starting conditions.
It is suitable for applications where higher starting torque and dependable motor startup performance are required, including water pumps, compressors, air coolers, submersible pump starters, and compatible single-phase motors.

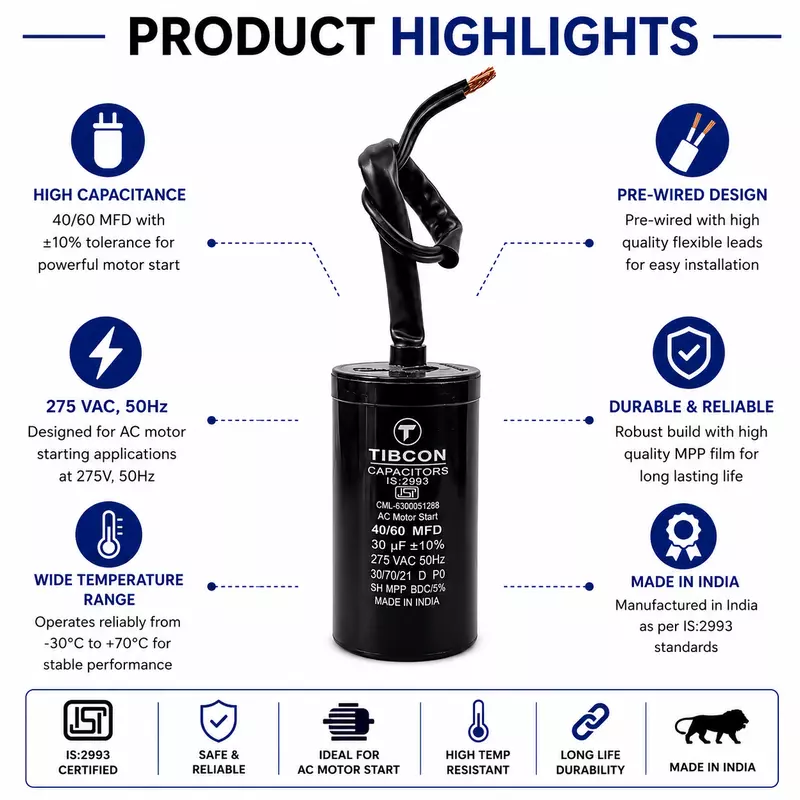

▣ Product Specifications
◎ Suitable For
☆ Key Features
Specifications
- TypeMotor Start Capacitor
- Capacitance40/60 MFD
- Actual Capacitance30 µF ±10%
- Rated Voltage275 V (AC)
- Frequency50 Hz
- DielectricMetallised Polypropylene Film
- ConstructionDry Type
- Body MaterialPolypropylene Can

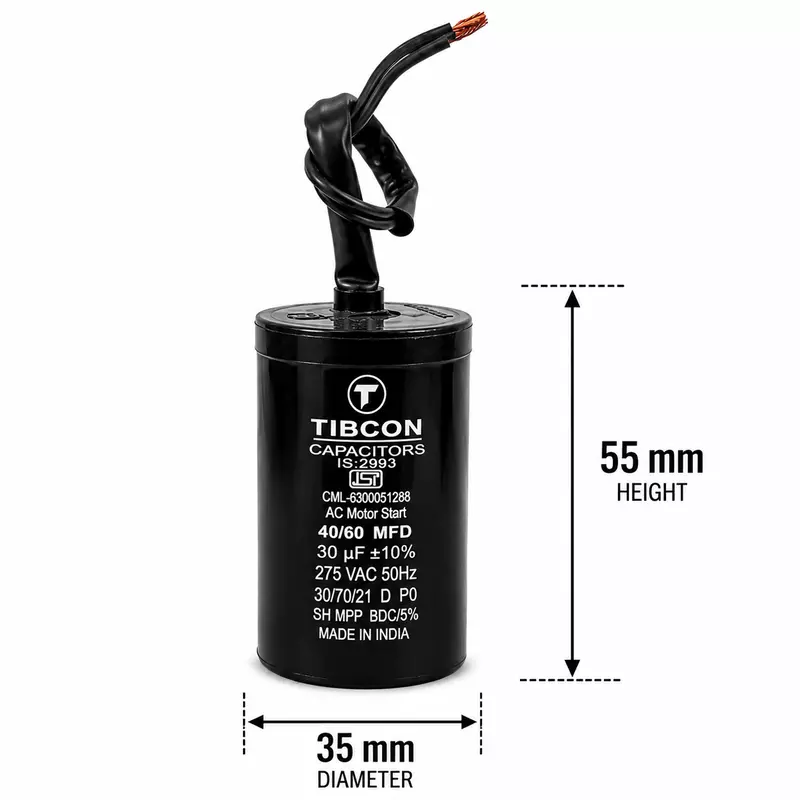

- ShapeRound | Cylindrical
- TerminalPVC Wire Leads
- Suitable forAC motor starting applications
- Metallised Polypropylene Film Constructiongood insulation
- Dry-Type DesignAvoids liquid electrolyte
