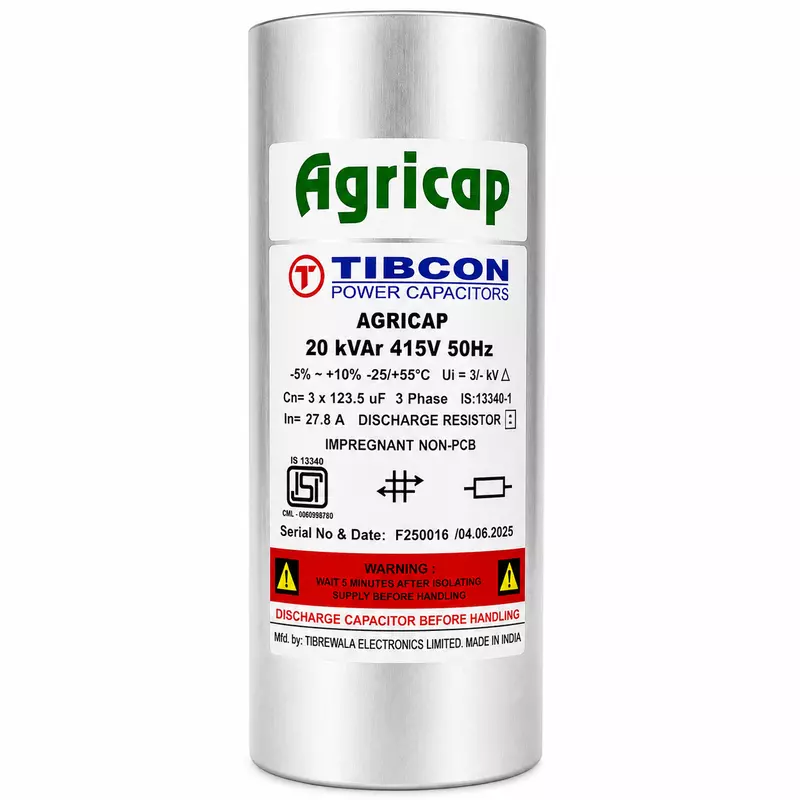

TIBCON 20 KVAR AGRICAP PFC Capacitor | Cylindrical Power Factor Correction (PFC) Capacitor
High-performance AGRICAP power factor correction capacitor designed for reliable reactive power compensation in agricultural, commercial, and industrial electrical systems.
The TIBCON 20 KVAR AGRICAP PFC Capacitor is specially engineered for power factor correction in agricultural pump panels, motor control systems, electrical distribution panels, and other inductive-load applications. It helps compensate for reactive power generated by motors and supports improved power factor and efficient utilization of electrical energy.
Designed with a durable cylindrical construction, this capacitor provides stable electrical performance and reliable operation under continuous-duty conditions. Its robust construction makes it suitable for demanding installations where dependable reactive power compensation is required for pumps, motors, and other inductive electrical loads.
With a 20 KVAR rating, the TIBCON AGRICAP capacitor is suitable for higher reactive power compensation requirements in agricultural and industrial electrical systems. It can help reduce unnecessary reactive current demand, improve power factor, and support better utilization of available electrical capacity when correctly matched to the installation.
Product Specifications
| Brand | TIBCON |
| Rating | 20 KVAR |
| Type | AGRICAP PFC Capacitor |
| Construction | Cylindrical Type |
| Application | Power Factor Correction |
| Suitable For | Agricultural Pump Panels, Submersible Pump Systems, Motor Loads, PFC Panels, Commercial & Industrial Electrical Installations |

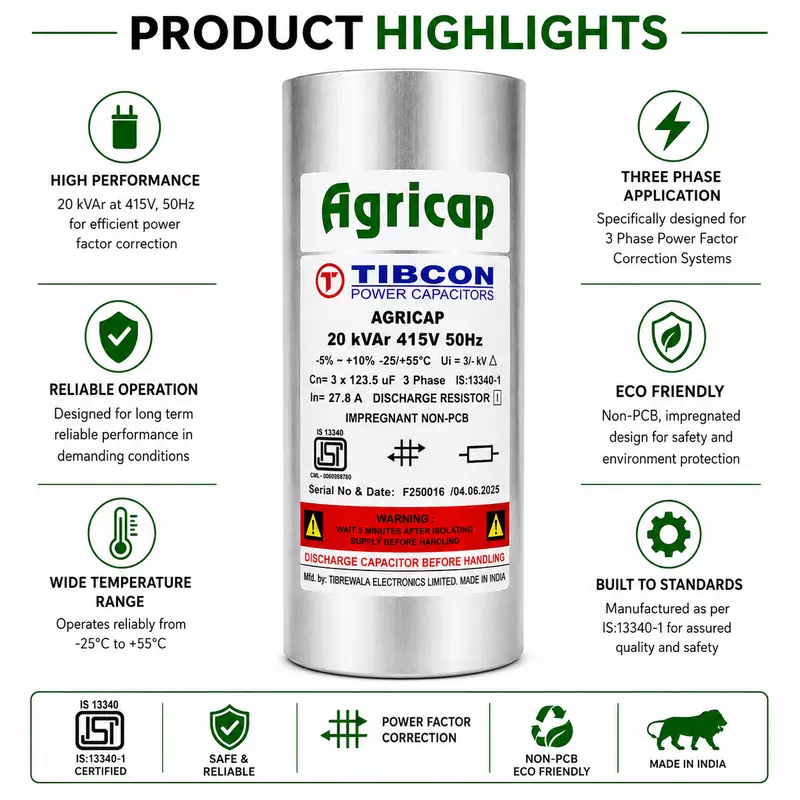

Key Features
- 20 KVAR rating for higher-capacity power factor correction applications
- AGRICAP design suitable for agricultural electrical installations
- Durable cylindrical construction
- Helps compensate for inductive reactive power
- Supports improved power factor and electrical system efficiency
- Stable electrical performance under continuous-duty conditions
- Suitable for agricultural pump panels and motor-driven systems
- Ideal for commercial and industrial power factor correction installations
Returns & Exchange Policy
- Returns accepted within 7 days of delivery
- Product must be unused and in original packaging
- Exchange available for damaged or defective products
- Products damaged due to improper installation are not eligible for return
- Original invoice and packaging required for processing returns or exchanges
Specifications
- BrandTibcon
- Series/RangeAgriCap
- Product TypePower Factor Correction (PFC) Capacitor
- ApplicationPower Factor Correction
- Rated Power20 kVAr
- Rated Voltage415 V
- Frequency50 Hz
- PhaseThree phase
- Capacitance3 × 123.5 µF
- Capacitance Tolerance-5% to +10%
- Operating Temperature-25°C to +55°C
- Insulation Level (Ui)3 / 3 kV
- Rated Current (In)27.8 A
- ConstructionRound/Cylindrical
- Dielectric / FillingImpregnant
- Discharge ResistorBuilt-in
- PCB StatusNon-PCB
- StandardIS 13340
- ManufacturerTibrewala Electronics Limited (TEL)
- MountingBase mounting
- HSN85321000
- Stock AvailabilityYes
- Country of OriginIndia
